Popoto 28 kHz Transducer
Popoto 28 kHz Transducer
SKU:PMT-28-0.5M-MCF-00
Regular price
$1,325.00 USD
Regular price
$0.00 USD
Sale price
$1,325.00 USD
Unit price
/
per
Couldn't load pickup availability

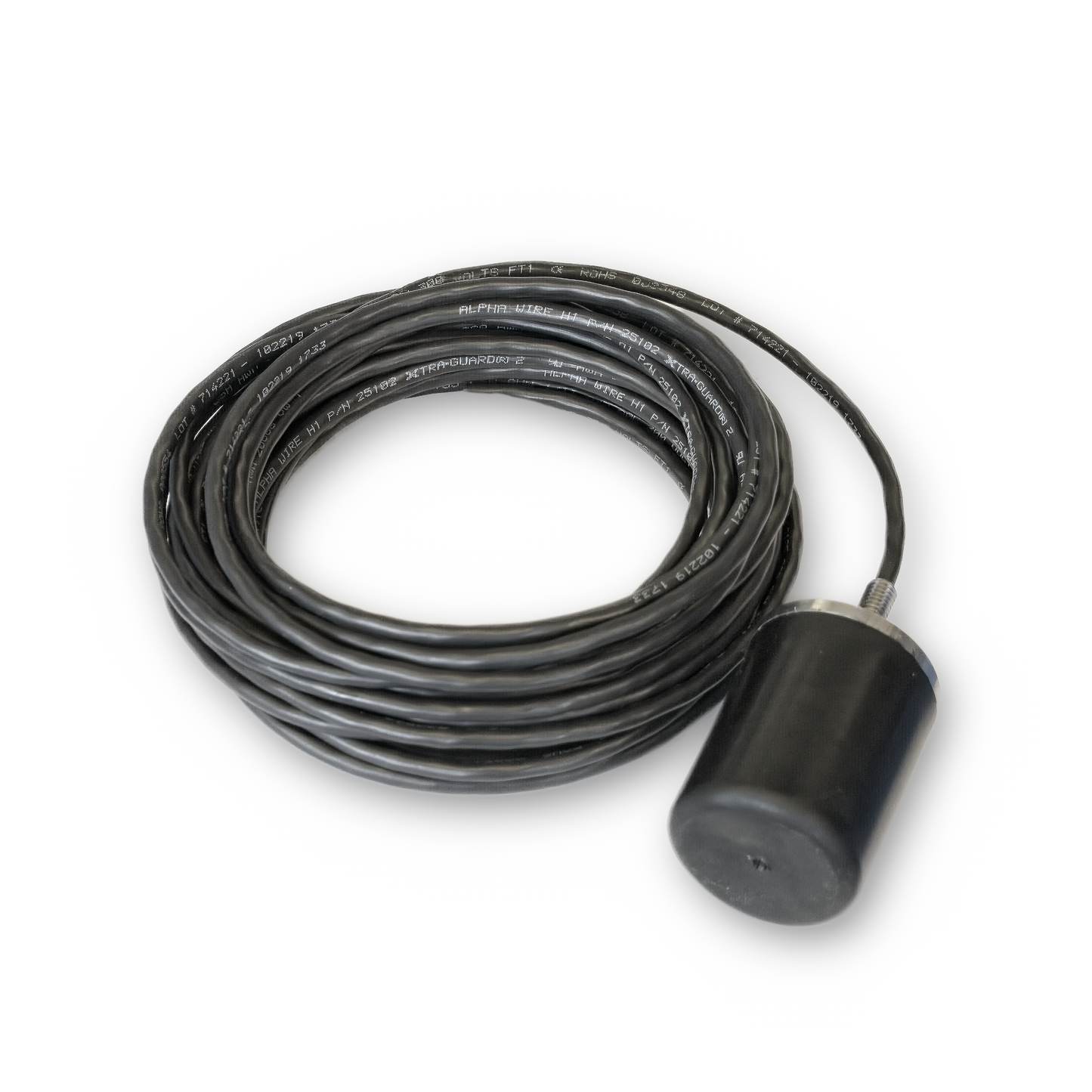

*Cable length in image not to scale. See configuration selection above for actual length in meters.

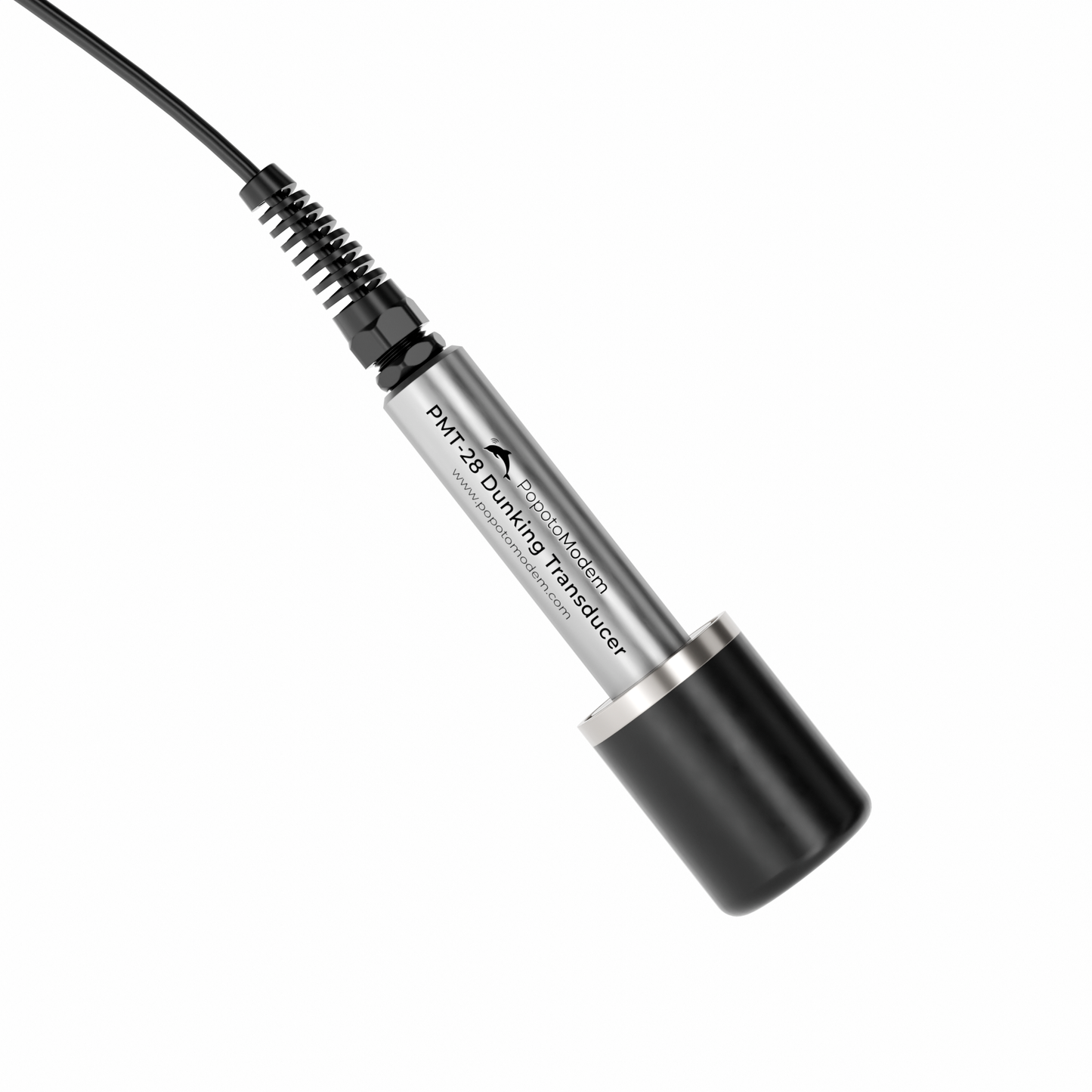

The Popoto 28 kHz underwater acoustic transducer is designed for efficient and reliable underwater communication. It features a 28 kHz resonance frequency, high transmit and receive sensitivities, and robust power handling for deep-water applications. With omnidirectional horizontal and toroidal vertical beam patterns, it provides broad acoustic coverage, making it suitable for various underwater telemetry and monitoring tasks.
Specifications:
| Specification | Value |
|---|---|
| Resonance Frequency | 28 kHz |
| Coupling Coefficient | 0.33 |
| TVR at fr | 141 dB re 1 µPa/V |
| SPL (Max) | 196 dB re 1 µPa |
| OCVS at fr | -189 dB re 1 W/µPa |
| Horizontal Beam Pattern | Omnidirectional |
| Vertical Beam Pattern | Toroidal |
| Depth (Max) | 700 m |
| Voltage (Max) | 600 Vrms |
| Weight (Air) | 244 g |
| Weight (Water) | 144 g |
