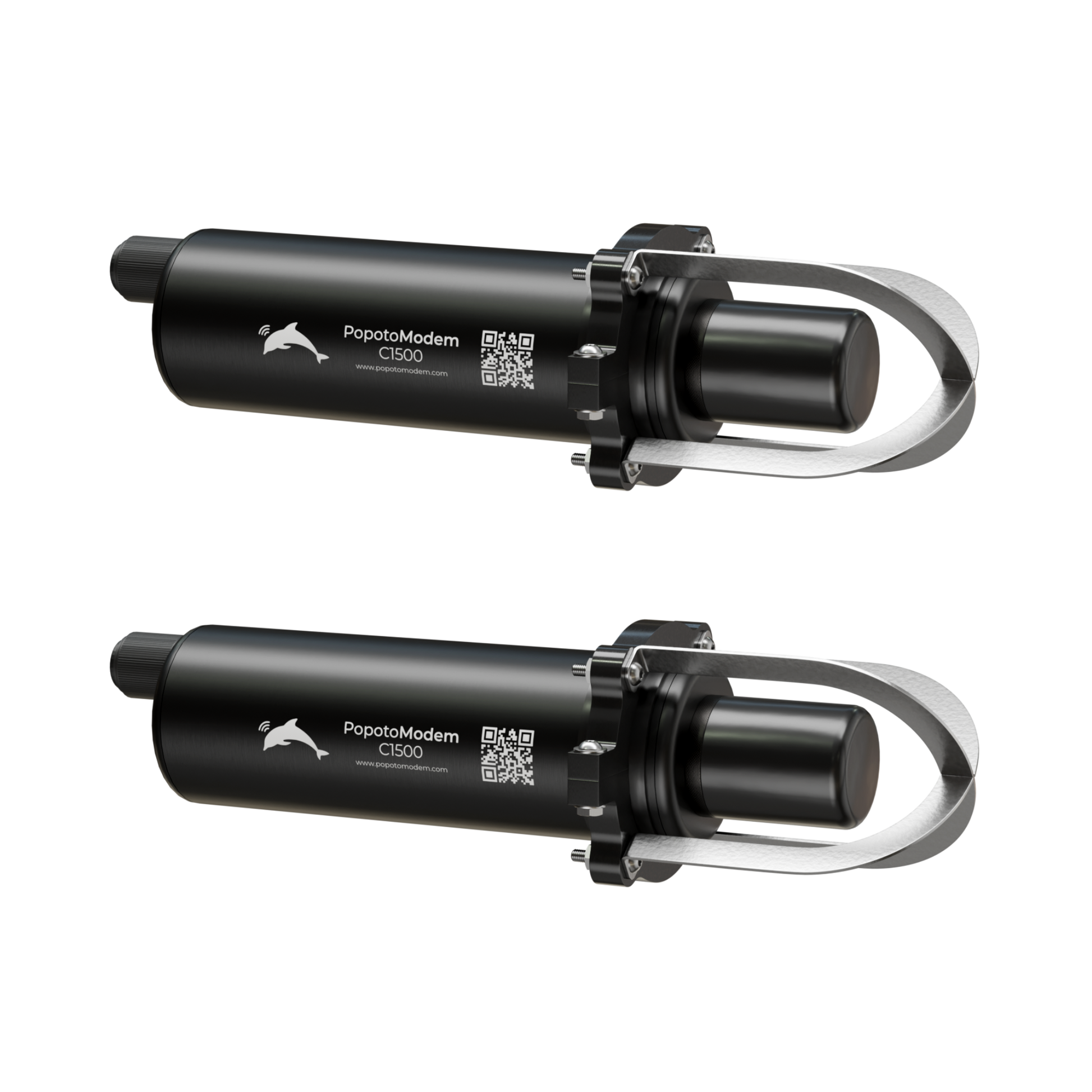

Dual C1500 Bundle Kit

The Dual C1500 Bundle provides a ready-made two-node subsea acoustic communication system in a compact, high-depth enclosure format. Each C1500 modem consists of our feature-rich PMM4511 boardset and a 77Wh Li-Ion battery housed in an aluminum pressure enclosure, creating a plug-and-play solution ideal for testing, development, field trials, and compact subsea network deployments.

Features:

• 2000 m Depth Rating: Compact aluminum housings designed for demanding subsea deployments.
• Compact Enclosed Design: Space-optimized 300 mm x 76 mm x 76 mm form factor for vehicle, mooring, and field-test applications.
• Long-Range Acoustic Communication: 1–4 km depending on conditions and modulation selected.
• Flexible Data Rates: 80 bps to 10,240 bps depending on the selected modulation scheme.
• Precise Acoustic Ranging: Two-way acoustic ranging with accuracy better than <0.3 m.
• Integrated Battery Power: Each modem includes a 77Wh 22.2V Li-Ion battery for portable operation.
• Easy System Integration: Ethernet, RS-422, RS-232, and programmable Linux APIs.
• Onboard Data Logging: 32 GB internal storage with waveform playback/recording capability.

Optional Specialized Features (License Required):

• Phorcys Stheno: Adds secure Phorcys communications capability on supported configurations.
• MARIA: Unlocks the Marine Acoustic Rapid Innovation Architecture for custom acoustic algorithms, PCM data access, and advanced hardware control.

NOTE: Requires 1 license copy per modem.

What's in the Box:

• 2x C1500 Enclosed Acoustic Modems
• 2x Popoto Digital Interface (PDI) Boards
• 2x Subconn-to-PDI Cables
• 2x USB Cables
• 2x Li-Ion Chargers

Technical Details:

Download the technical specifications sheet at www.popotomodem.com/documentation for more in-depth information.
