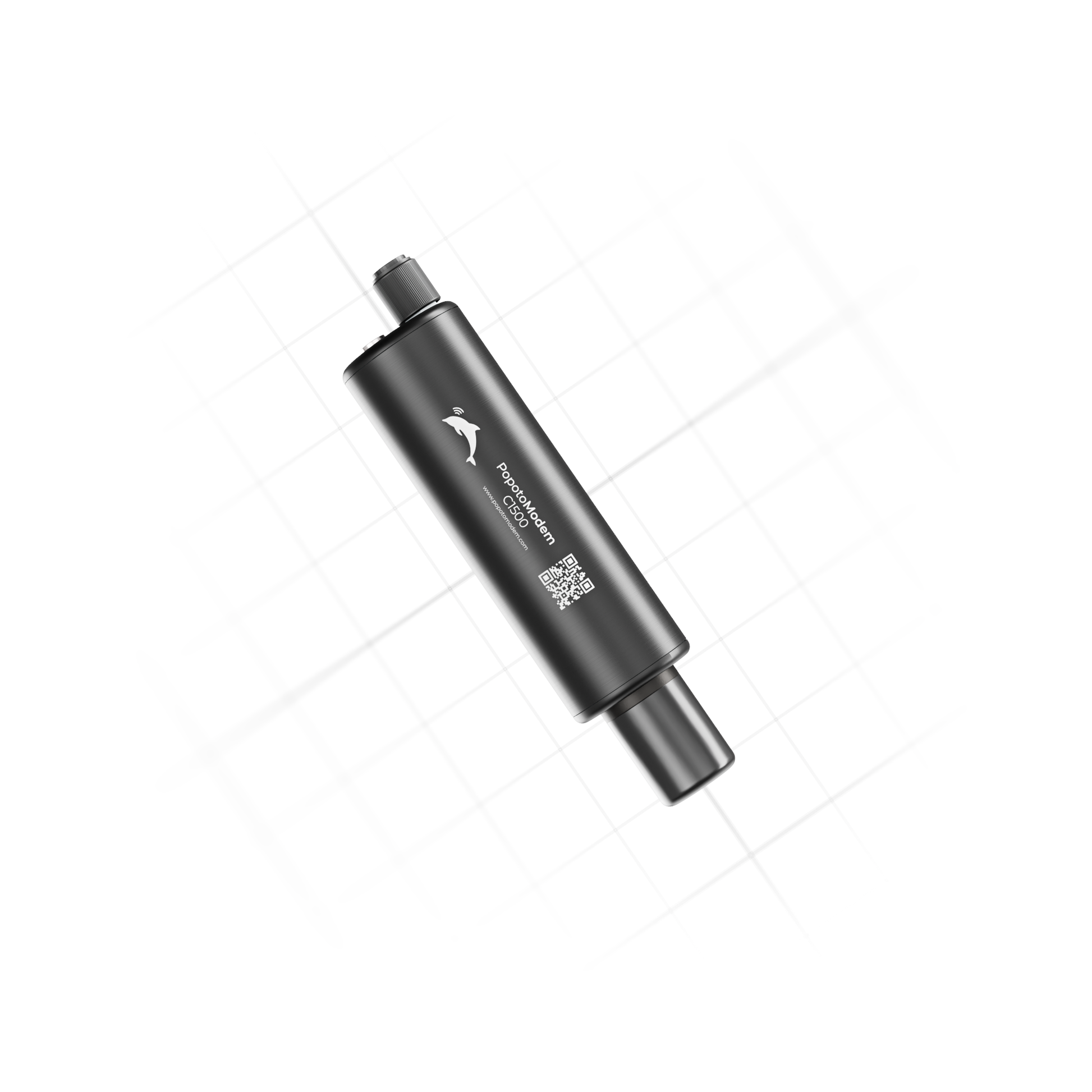

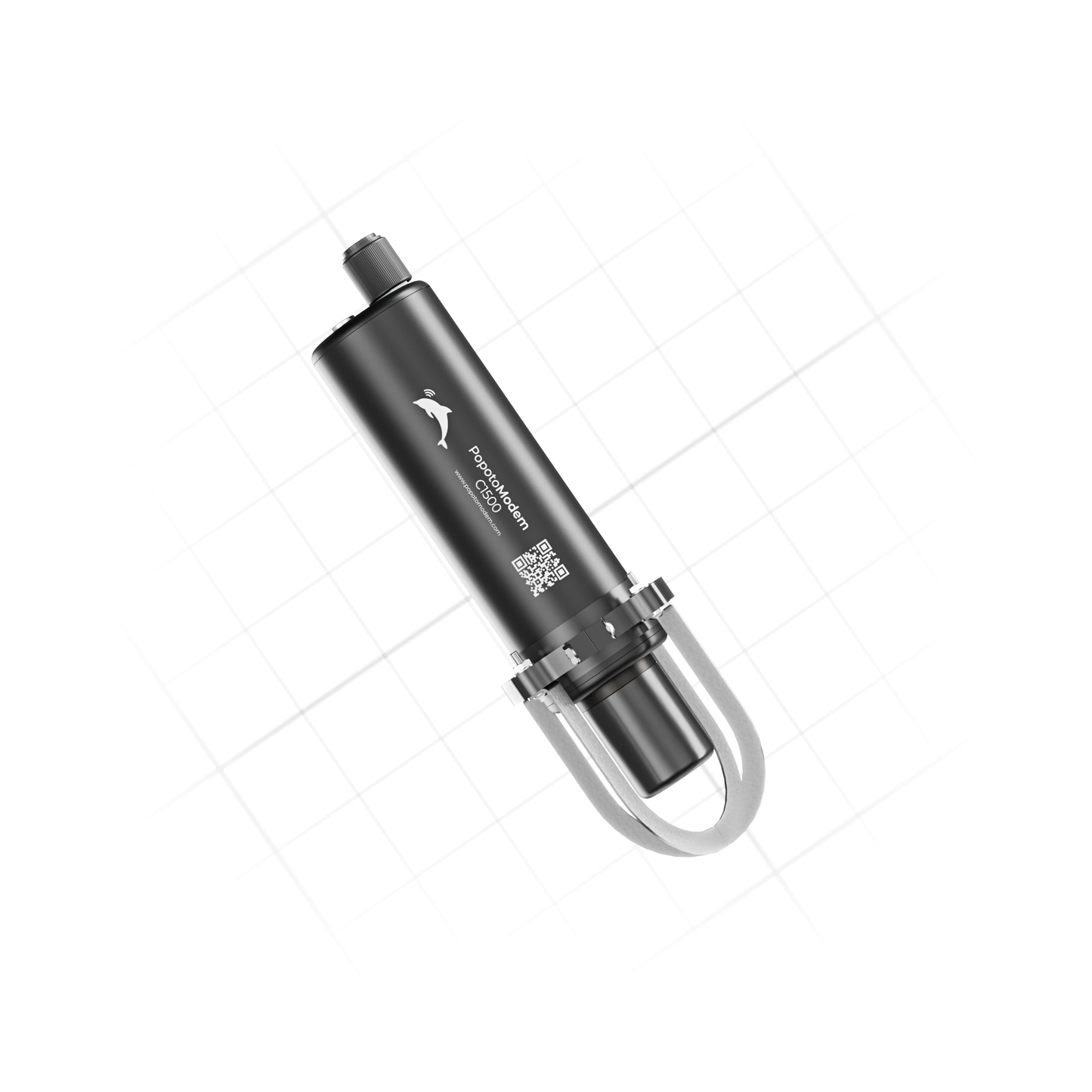

C1500 - Compact Underwater Acoustic Modem

The C1500 Underwater Modem is Popoto Modem’s most compact battery-powered underwater acoustic modem, designed for reliable communication, ranging, and system integration in demanding subsea environments. Built around the PMM4511 modem board set and packaged in a rugged aluminum enclosure, the C1500 provides an all-in-one acoustic modem solution with an integrated 22.2 V, 3500 mAh lithium-ion battery and a compact 300 mm x 76 mm x 76 mm form factor depth-rated to 2000 m.

C1500 Features:

• Compact Battery-Powered Design: Integrated 22.2 V, 3500 mAh lithium-ion battery in a rugged, deployment-ready enclosure.
• Long-Range Acoustic Communication: Supports reliable underwater communication depending on conditions, transducer configuration, and modulation selected.
• Flexible Data Rates: 80 bps to 10,240 bps depending on the selected modulation scheme.
• High-Power Acoustic Output: Transmit output levels up to 175–180 dB re 1 µPa @ 1 m.
• Precise Acoustic Ranging: Two-way acoustic ranging with accuracy better than <0.3 m.
• Programmable Linux Platform: 1.4 GHz Arm® Cortex®-A53 processor running Linux for customization and integration.
• Easy System Integration: Python, MATLAB®, C++, and JSON APIs, with web interface and pShell configuration tools.
• Onboard Data Logging: 32 GB internal storage (approximately 20 GB usable) with microSD expansion up to 1.5 TB+.
• Waveform Playback and Recording: Baseband and passband waveform playback and recording during modem operation.

Optional Specialized Features (License Required):

• Phorcys Stheno: Adds secure Phorcys communications capability in the 20–28 kHz operating band.
• MARIA: Unlocks the Marine Acoustic Rapid Innovation Architecture for custom acoustic algorithms, PCM data access, and advanced hardware control.

What's in the Box:

• 1x C1500 Underwater Modem
• 1x Battery Charger
• 1x 1 m Lab Cable

Technical Details:

Download the technical specifications sheet at www.popotomodem.com/documentation for more in-depth information.
